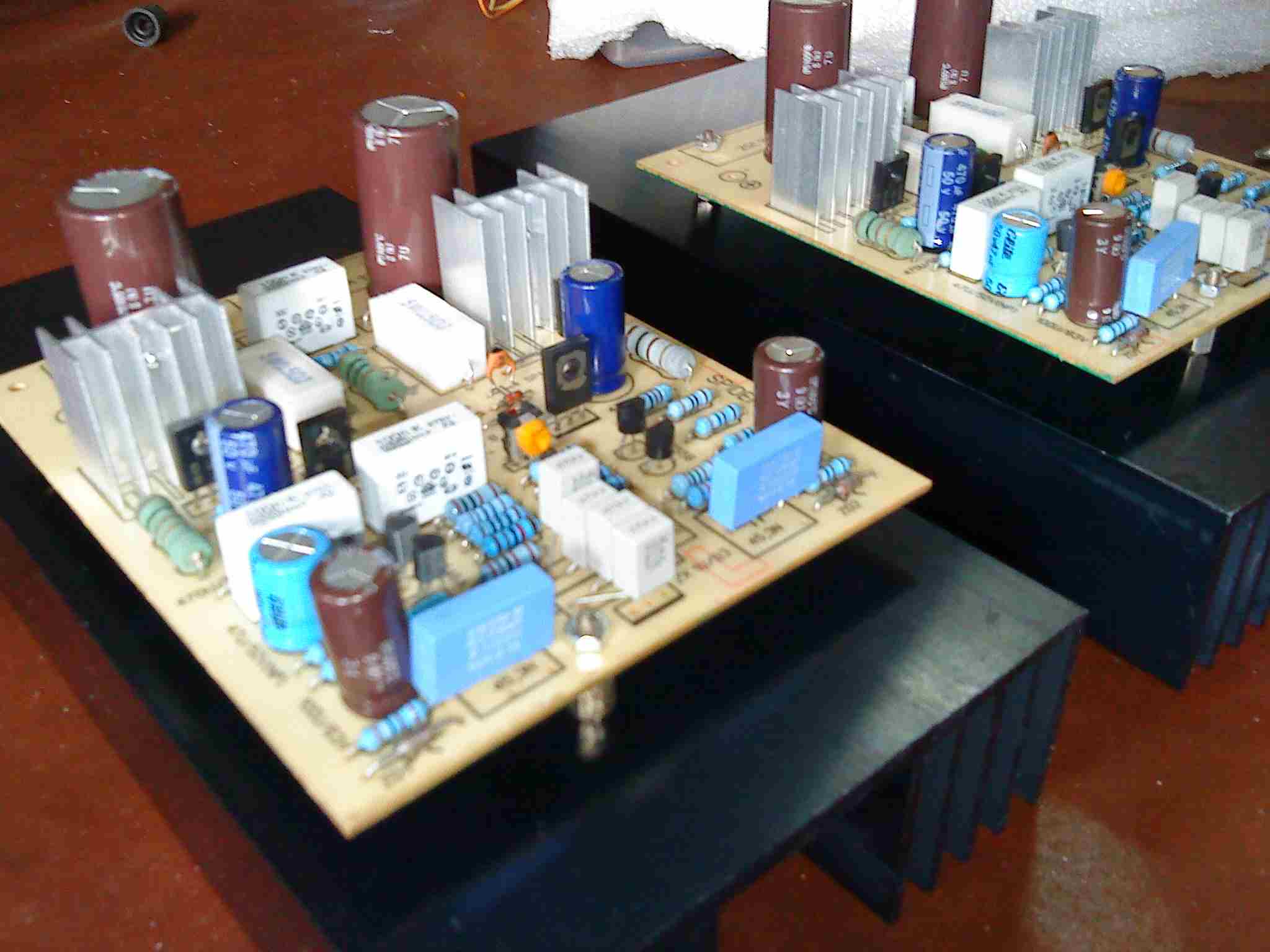

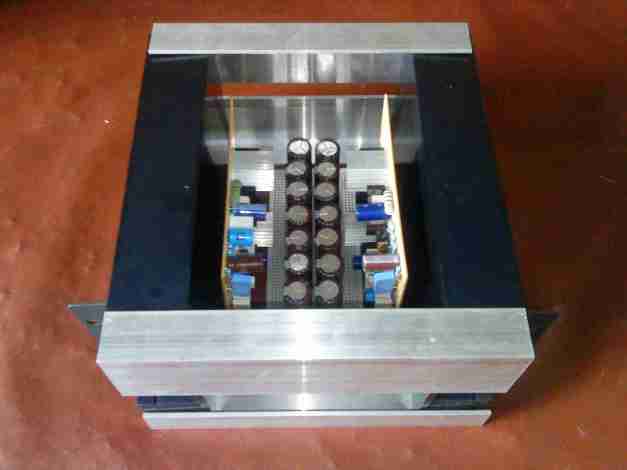

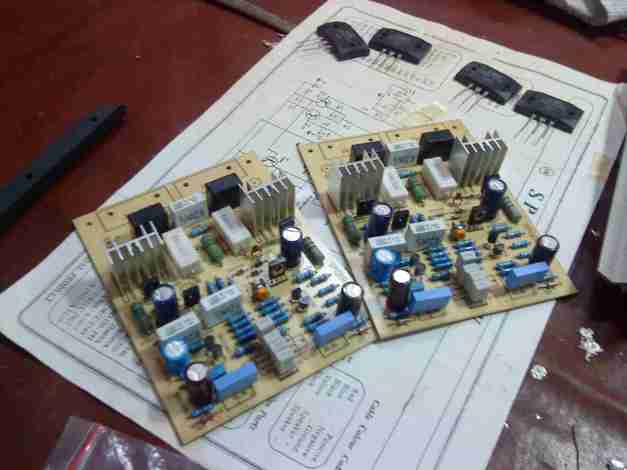

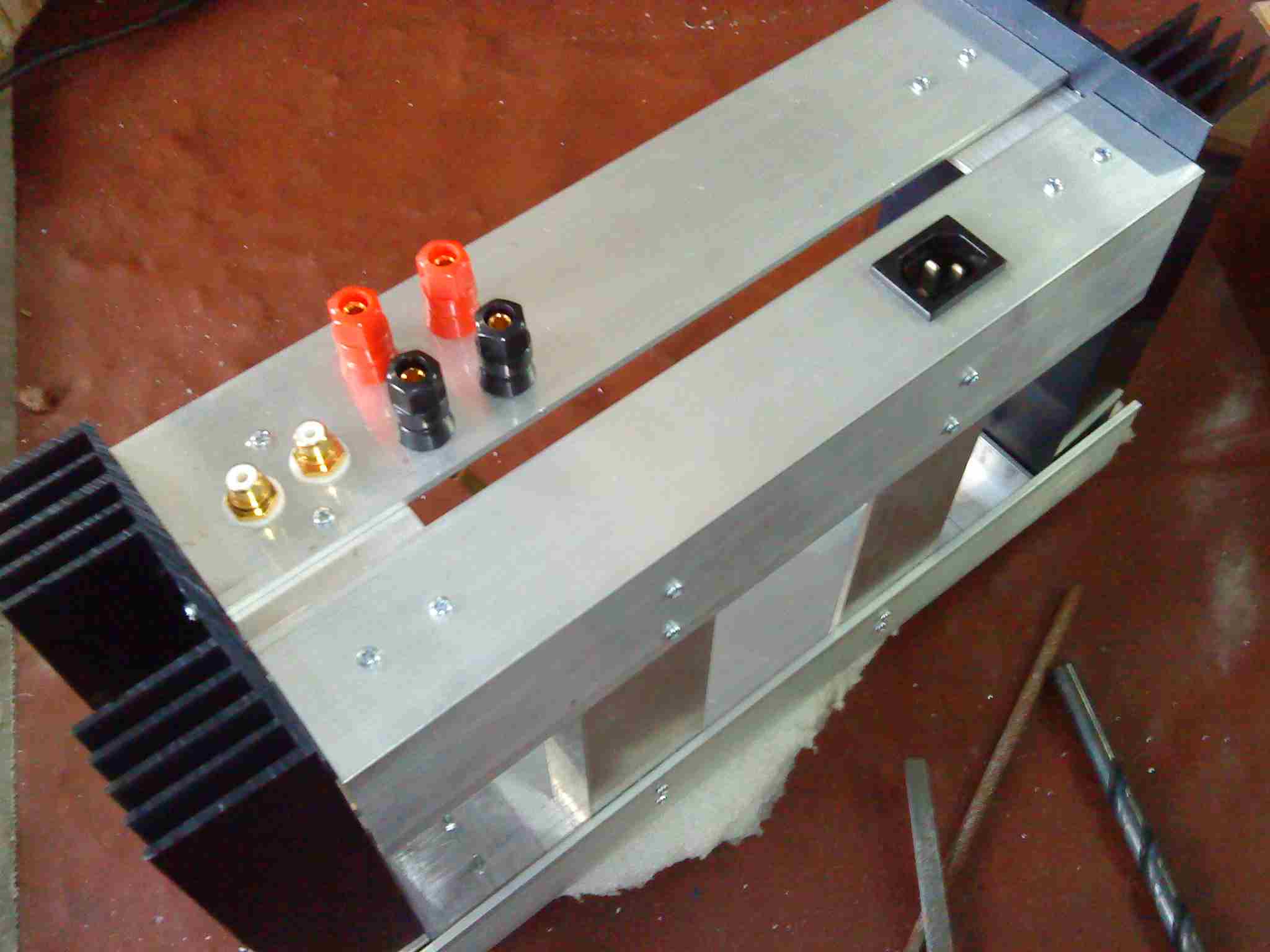

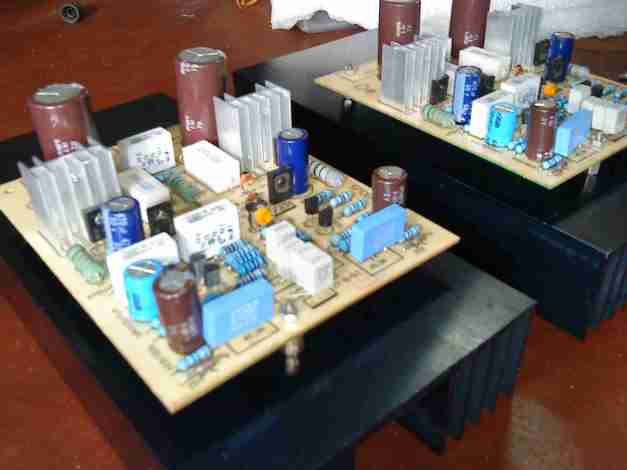

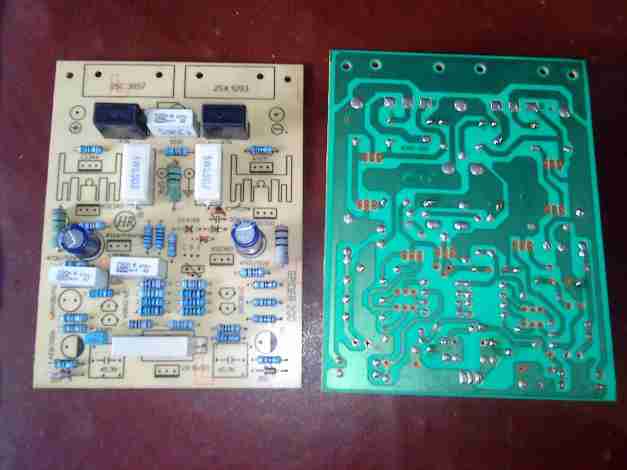

This is my new project, although I have the PCB for a long time. Maybe this is not too interesting project but there is something special with the chassis. The chassis are build by 2 big heat sink and L aluminum that usually used for panel or cable rail in IT industries . This is some pictures about what I’ve planned.
Well I’m still working on it, soon I’ll update this post.
May 30th Update

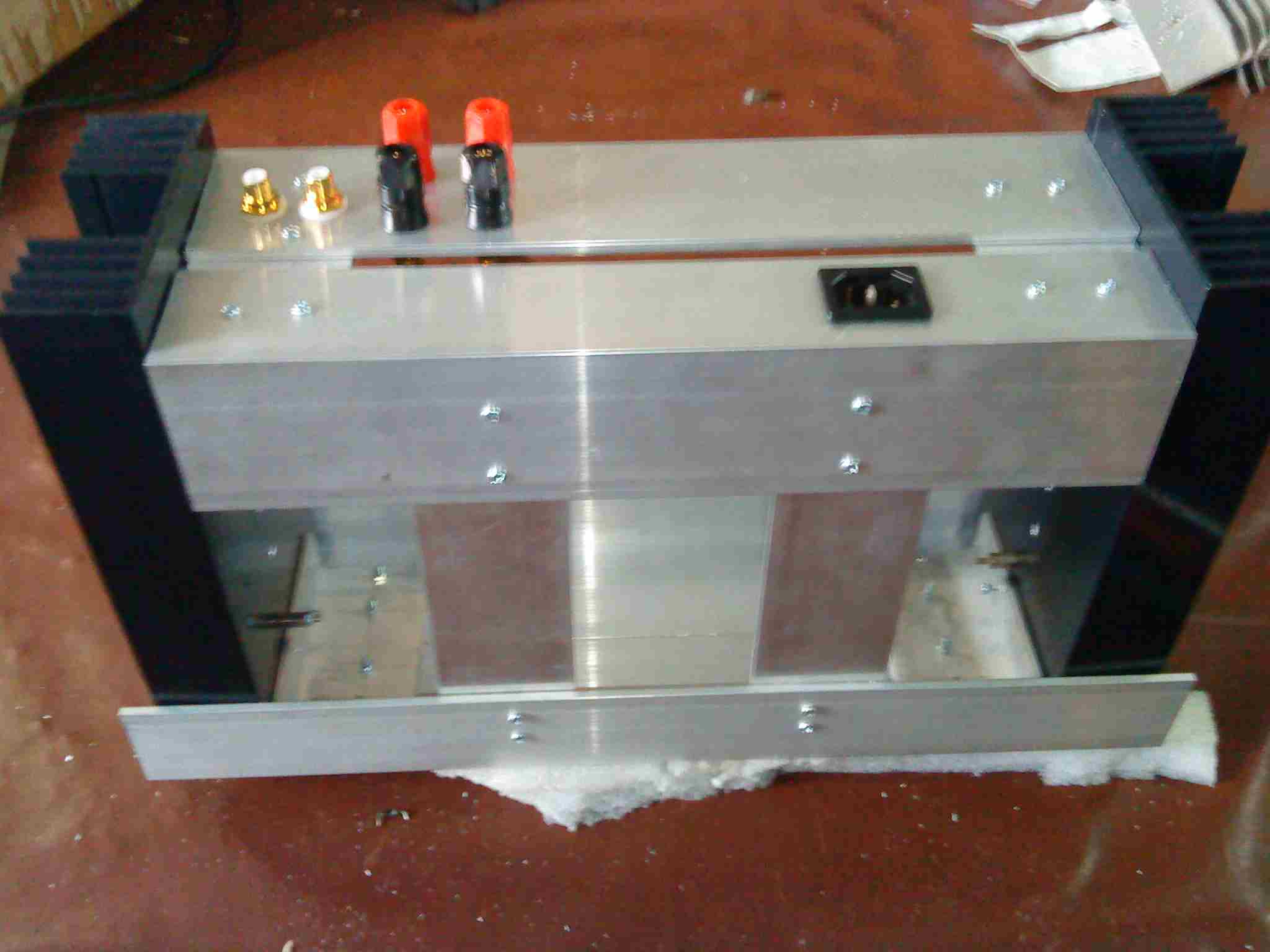

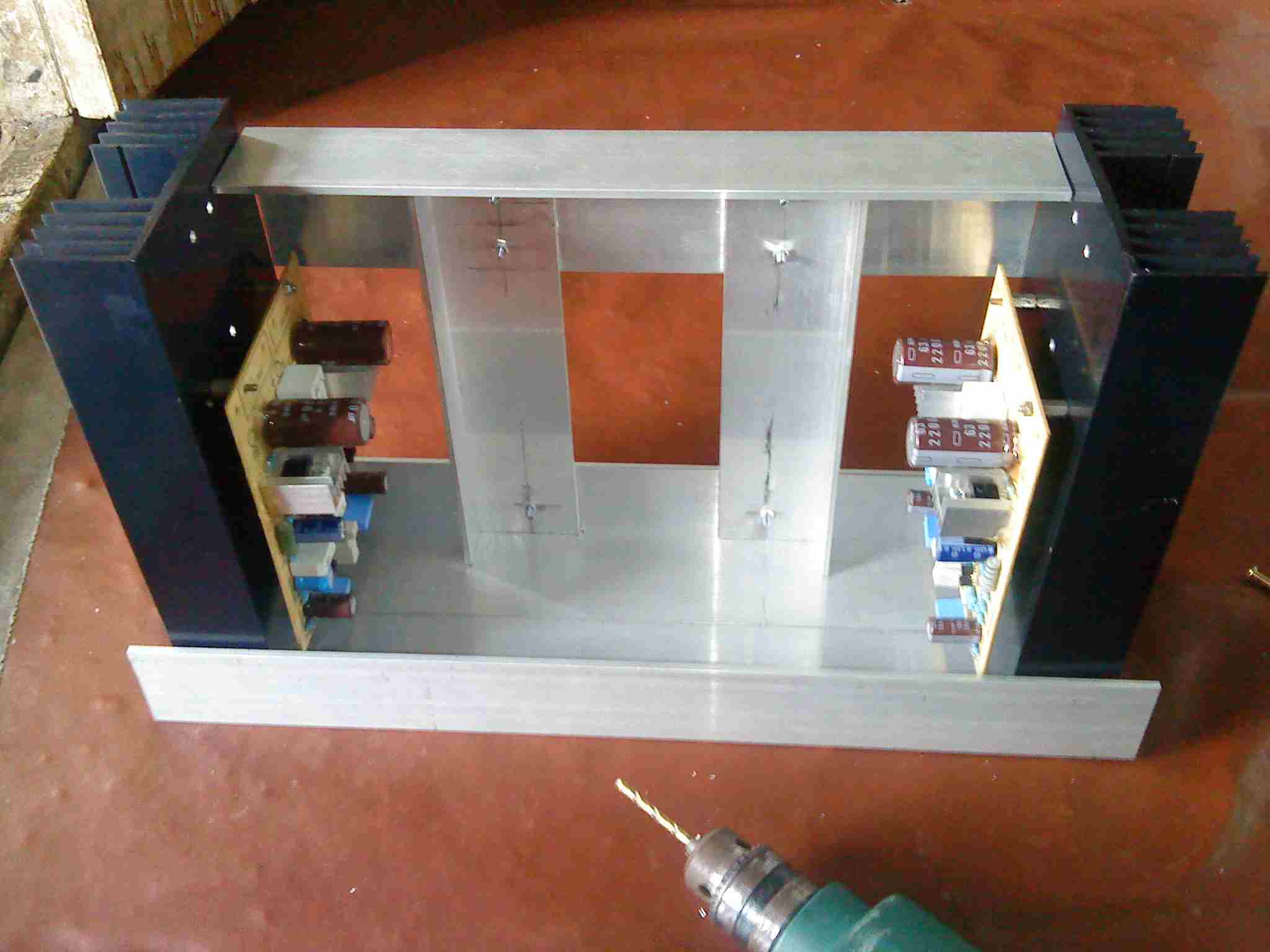

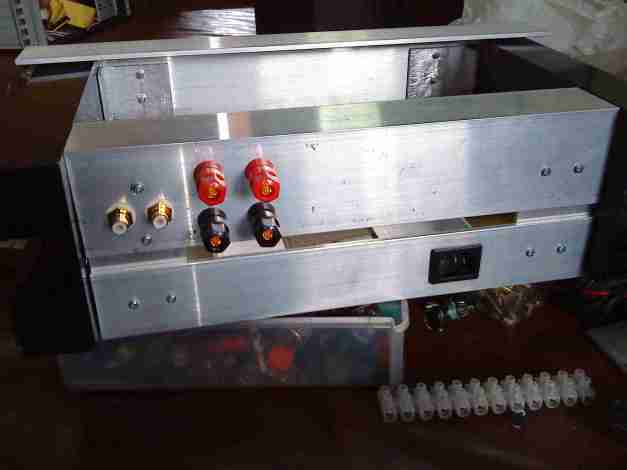

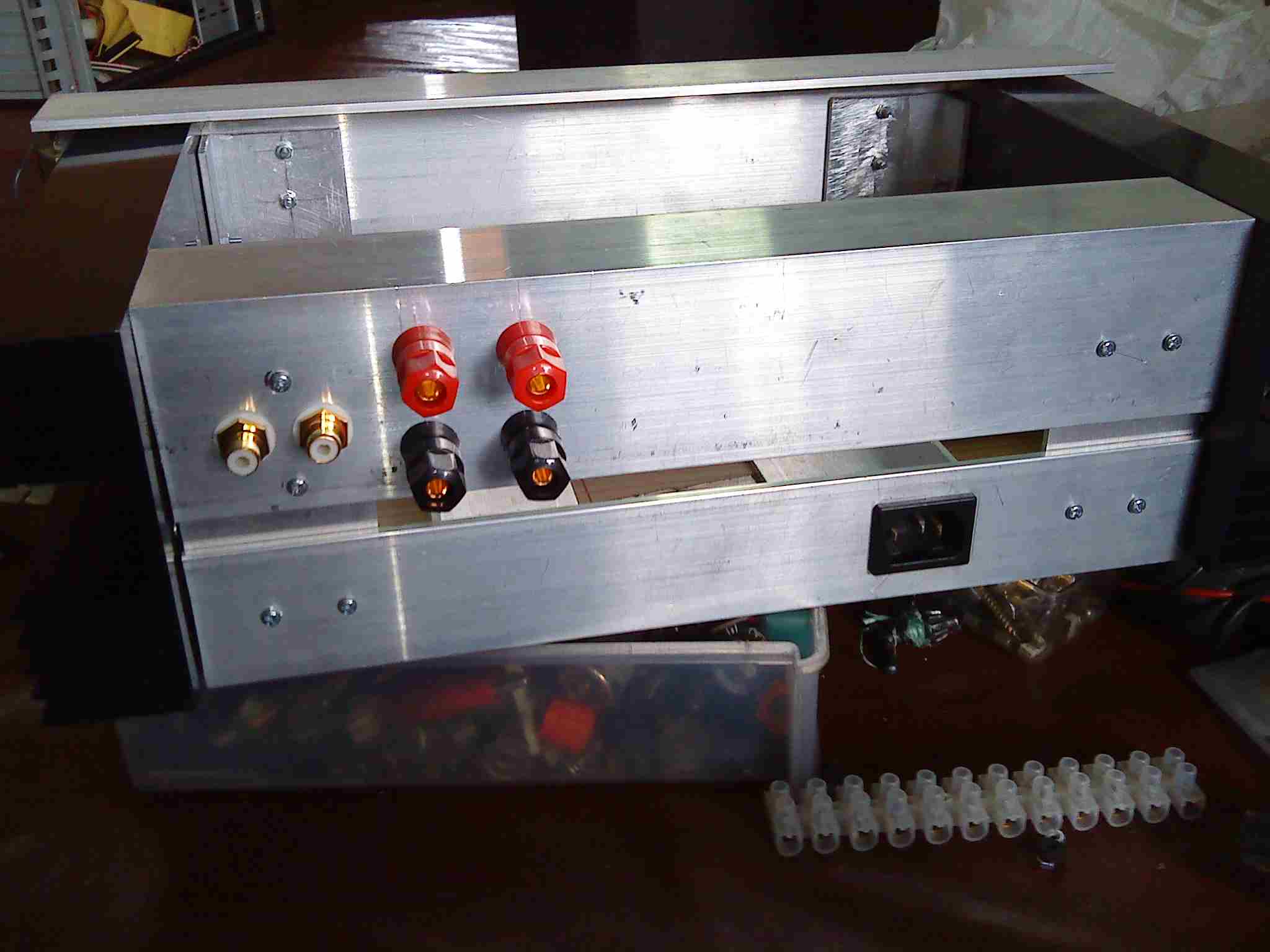

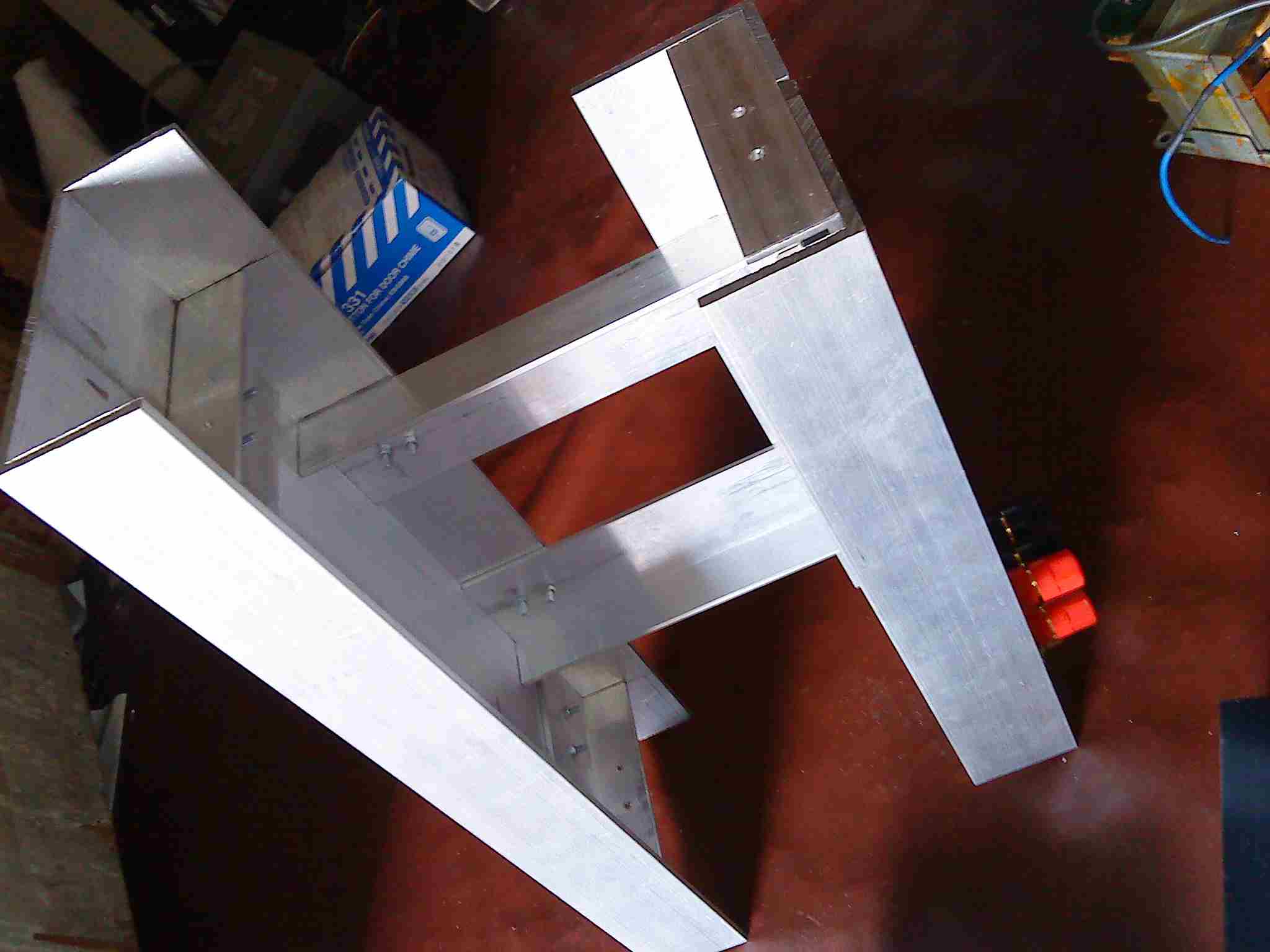

Metal work is the most killing time and absolutely make you sweat fall hard, except you have a proportional tools for the job. But maybe I’m not the lucky one to have that tools, so I do it with manually and of course that’s a challenge for me. I use a hand electric drill, handsaw, grinder, pliers and standard tool I’ve got. Well I hope the result makes me happy.
June 22th Update

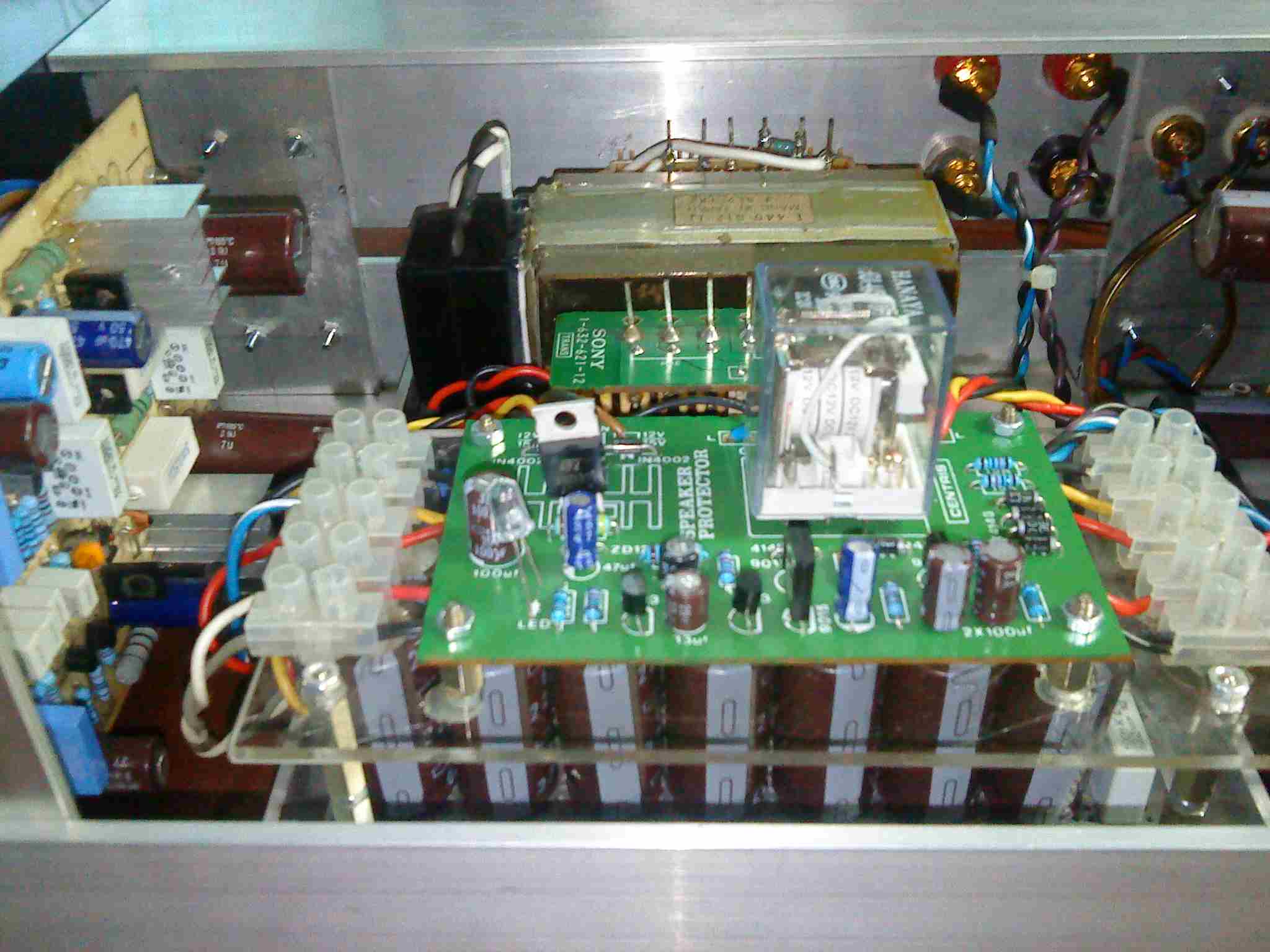

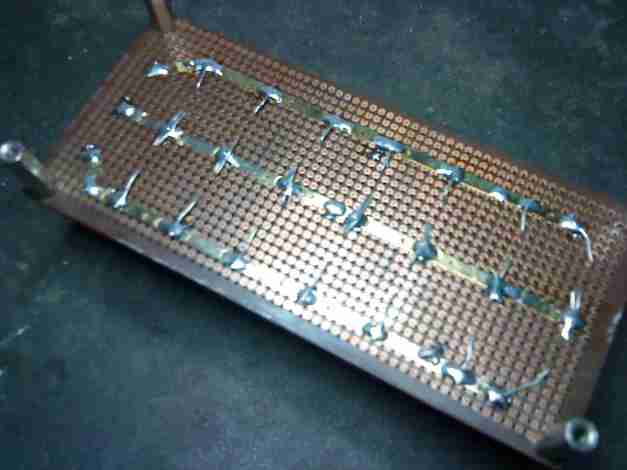

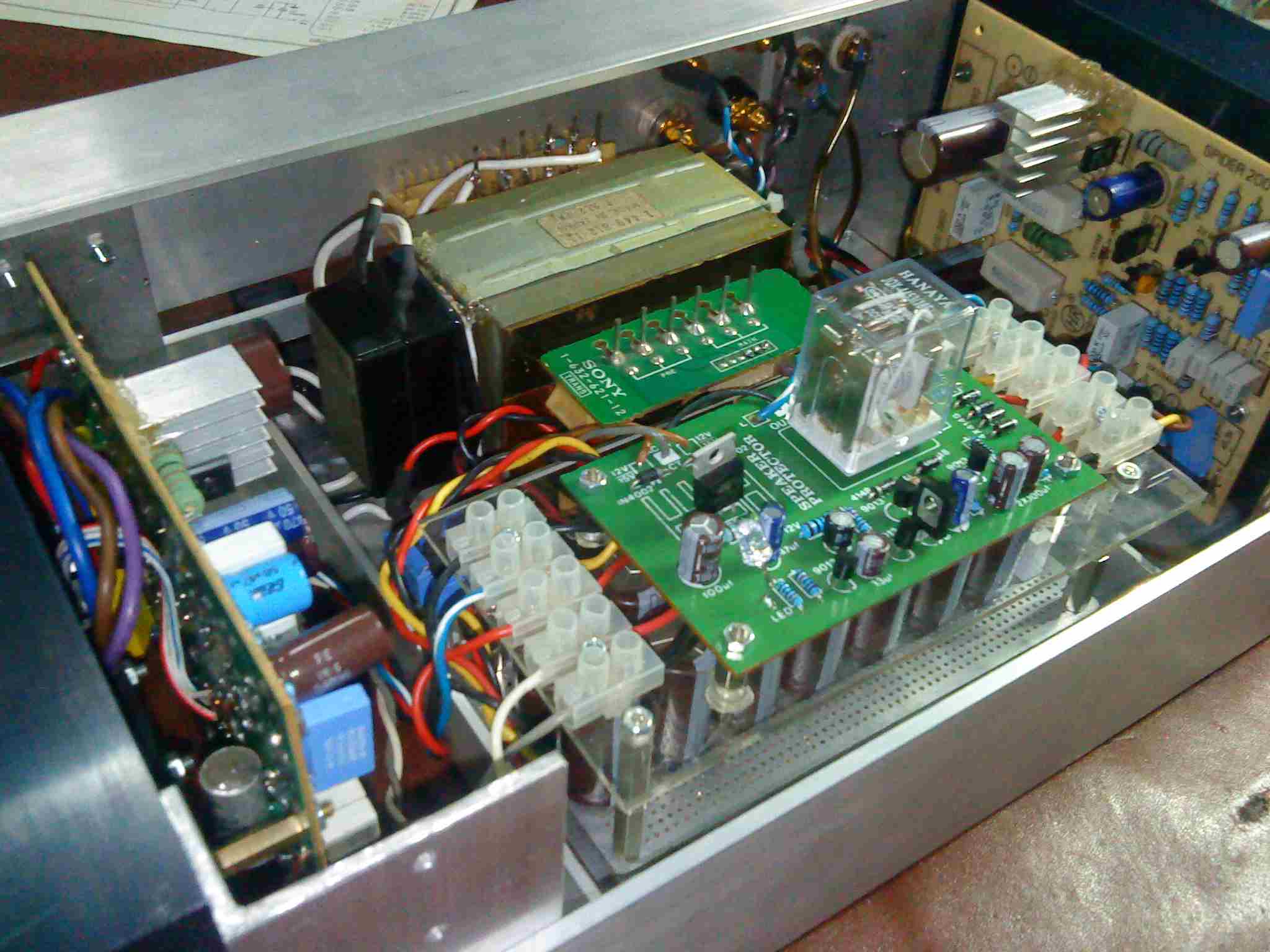

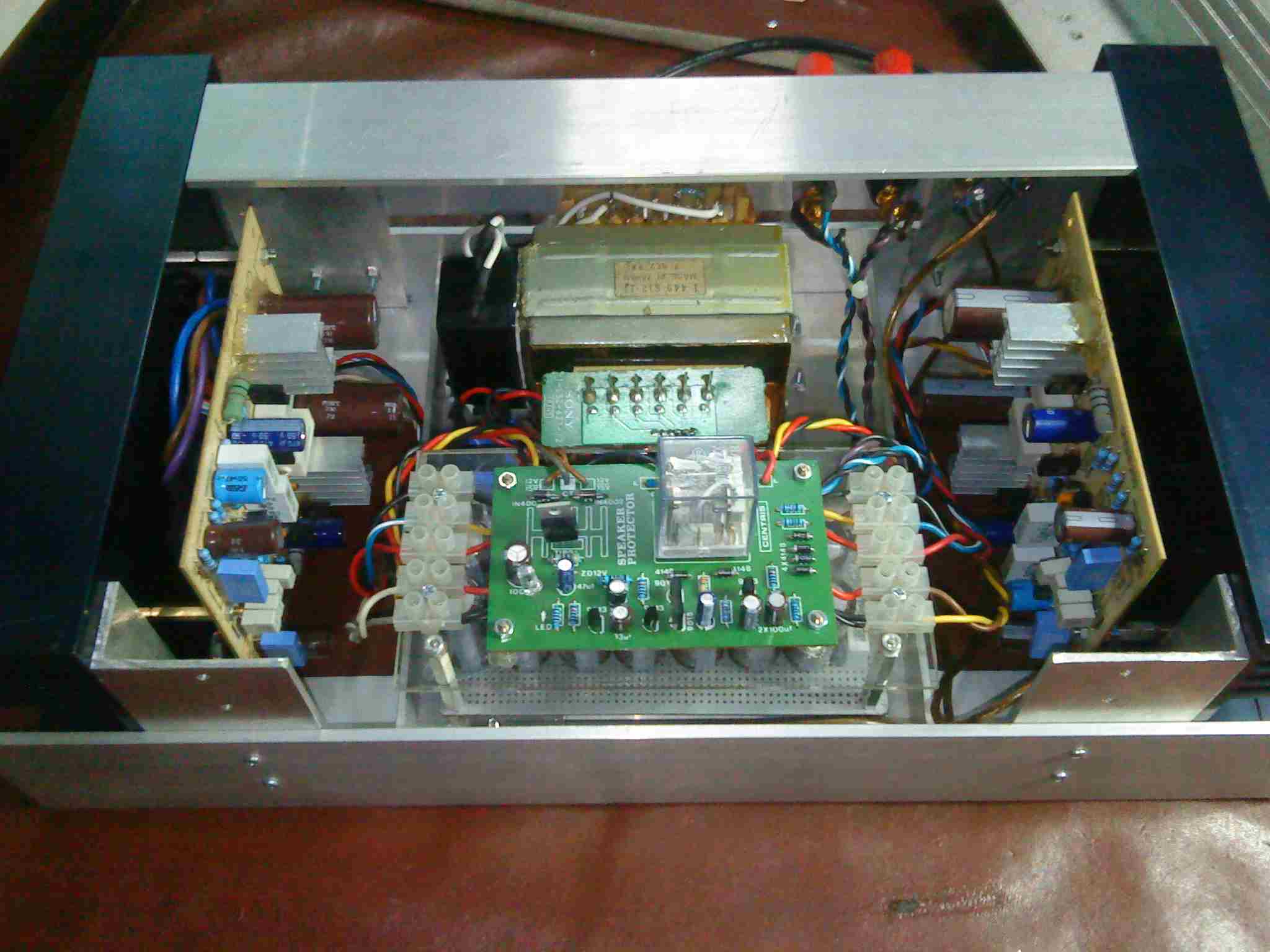

I finished some wiring job and put a speaker protector which is have DC protection and start up delay. I put it above the capacitors bank with PCB mounting and fiber glass. I’m using cable terminal for supply rail and speaker for easy maintenance.
July 23th Update
After I finished wiring job, I run the amp for testing. When I turn on the amp, the speaker protector (which is has DC protection) detect some failure. The Led is flashing indicating DC voltage at amp output. After some checking, I found failure at left channel amp. There is unexpected problem with the driver transistor that I actually found this error for the first time and took lots of time to find that fault. The MJE340 transistor is a PNP transistor?? I don’t know how it could be, but I’m happy because it is not damaging the output transistor. After I replace the MJE34o(incorect label) with another MJE340 NPN transistor, the amp is working. Now is time for setting the questcent qurrent.
When I set the quescent qurrent there is another failure. The right channel is getting hot so fast and almost burn my fingger when I touch the driver transistor heatsink. Turning left/right VR1 doesn’t make changes. I check all diodes and transistor bias and I can’t find fault of that parts. That condition is confusing me for some time. After that I decide to replace all bias diodes (IN4148) with the new tested diodes and it’s surprisingly clear the failure.
Next I continue test the amp. I put my onkyo speaker at the output and IBM R52 Thinkpad with 12MB “the dreamer Ozzy Osbourne” mp3 file song for source. Like I wrote before I didn’t matched all the transistors and diodes for this project. I only matched the output transistors pair 2SC2922 and 2SA1216, but the amp sound greats. I didn’t hear any noise at all even with open line in. I think this is enough for the purpose and I’m happy for the result.
-The matched transistor for input stage, buffer and driver will increase the sound quality.
-High quality multiturn variabel resistor for VR1 is important for setup the quescent qurrent more save and easy.
-Bigger transformer for power supply can make this amp more reliable especially when operate the amp at full power.
-Vertical fin heatsink (it is quite hard to find at my local store and more expensive) is highly recomended for the chasis because it can releases heat more efective.
August 8th Update
I test the spider with audiophile female voice CD and the result quite surprising. The amp deliver good sound qualities and enough power for all day purpose. The amp has deep sound stage, good stereo imaging and natural sound. Overall I recomended this amp for your hi-fi system. For daily use it never let me down… 🙂
mas, apa istimewanya spider? agak bingung aja setelah buat class a kok tau2 bikin spider, ini rancangan siapa mas. Maaf saya soalnya newbies tanyanya aneh.
Ga usah bingung mas bro Aulia, khan tergantung peruntukannya, walaupun sebenarnya bisa buat apa aja. Terakhir saya buat spider itu tahun 2001. Dayanya lumayan besar sekitar 100Watt RMS/kanal. Sampe skarang masih operasional di masjid di daerah Rw Mangun.
Klo rancangan siapa, saya kurang tau juga (sepertinya pernah ada di Majalah elektor), yg pasti kit nya mudah diperoleh dan spesfikasi lebih baik dari modul ETI 480 yang sempat populer. Plannya power ini untuk keperluan di studio musik, dimana biasanya amplifier dipacu kerja keras untuk waktu yang lama.
Gpp mas, kita sama2 belajar kok 🙂
trafonya taro dimana?
bth berapa? tegangannya?
blom jd tuch bro, ntar hasil akhirnya diupdate. Teg nya +40V CT -40V.
Tertarik sama Heatsinknya
Itu H/S item gede bisa dapet dimana ya bro bbm…
itu beli di jl.kembang sepatu Senen Jkt(depan dian elektronik), lg jln2 iseng eh liat ntu heatsink, ya udh langsung sikat aja. Secara udh lama ane jg nyari2 tuh heatsink model gitu…waktu itu ada 6 biji, ane mo sikat semua tp yah duid na cuma mampu beli 2 hehehe…
komponennaya ngeri semua
