Relay, Switch, Connector

TELEDYNE RELAY 172-12 : HIGH FREQUENCY RELAY

Rp 235.000/pcs,

Digunakan untuk switching signal  RF pada perangkat komunikasi dgn kontak sangat baik berlapis emas sehingga loss daya  sangat rendah. Bisa digunakan untuk switch pada perangkat microcontroller yang memerlukan tingkat presisi tinggi, atau switch perangkat audio highend pengganti switch dpdt standar.

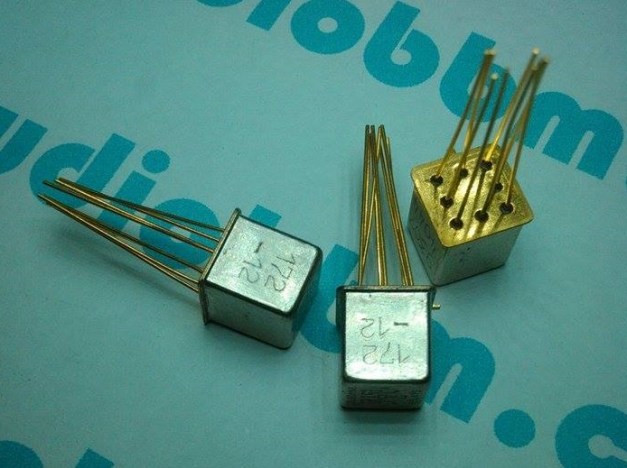

Relay 172-12

Teledyne high frequency (RF) relay, Up to 1GHz Capabilities.

Over View

DPDT Relay Type, 0.15 Ohms (Max.) Contact Resistance, PCB Mount, CENTIGRADE® Commercial Relays, All welded construction,  Unique uni-frame design providing high magnetic efficiency and mechanical rigidity, 12V operation(for 172-12).

– High force⁄mass ratios for resistance to shock and vibration
– Advanced cleaning techniques provide maximum assurance of internal cleanliness
– Precious metal alloy contact material with gold plating assures excellent high current and dry circuit switching capabilities.
– Telecommunications, Test instruments, Mobile communications, Attenuators and automatic test equipment

– Hermetically Sealed
– Surface Mount (S172 Series)
– Gold-Plated Contacts
– Dry Circuit to 1 A, 28 VDC
– Excellent RF Performance, DC to 1 GHz

Klik disini untuk melihat Teledyne 172 series Datasheet

Stock : 10 Pcs, very limited.

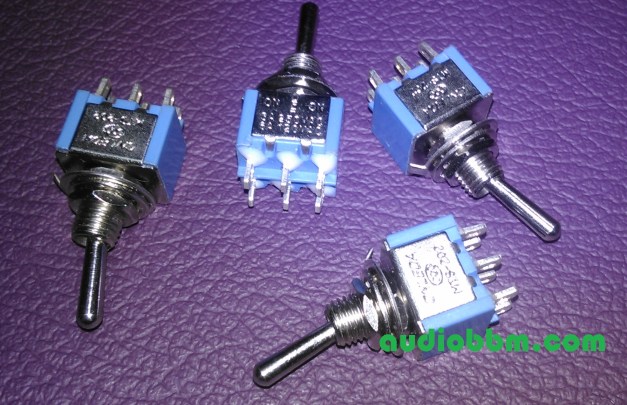

DPDT TOGGLE SWITCH

Rp 10.000,-/pcs

IMG_20141121_195420

DPDT Toggle switch kualitas baik, tidak keras saat digunakan.

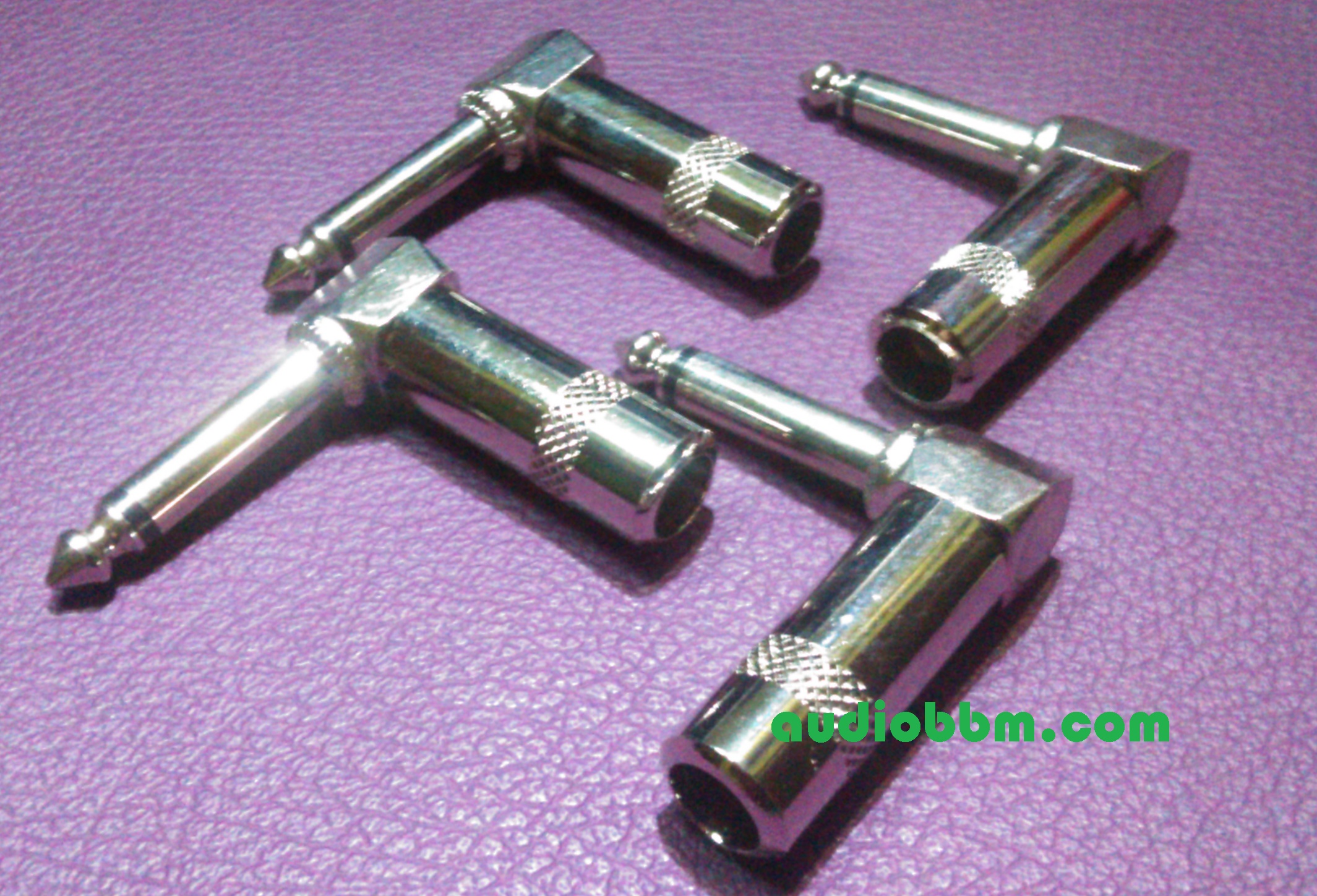

Konektor Microphone, Guitar  L

Rp 15.000,-/pcs

IMG_20141121_194335

Konektor microphone atau gitar kualitas baik.

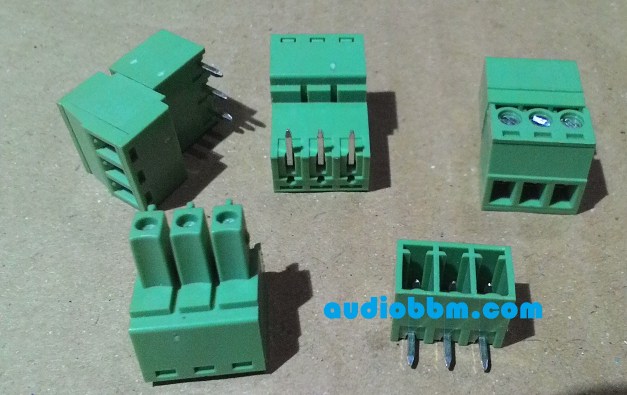

Terminal Soket Pluggable 3 Pin

Rp 8000,-

Jpeg

Terminal 3 Pin

Rp 4000,-

Jpeg
